| Low torque, high speed hysteresis loading motor test bench, delivered to Chongqing |
| Hits：8424 AddTime：2022/4/2 11:05:57 |

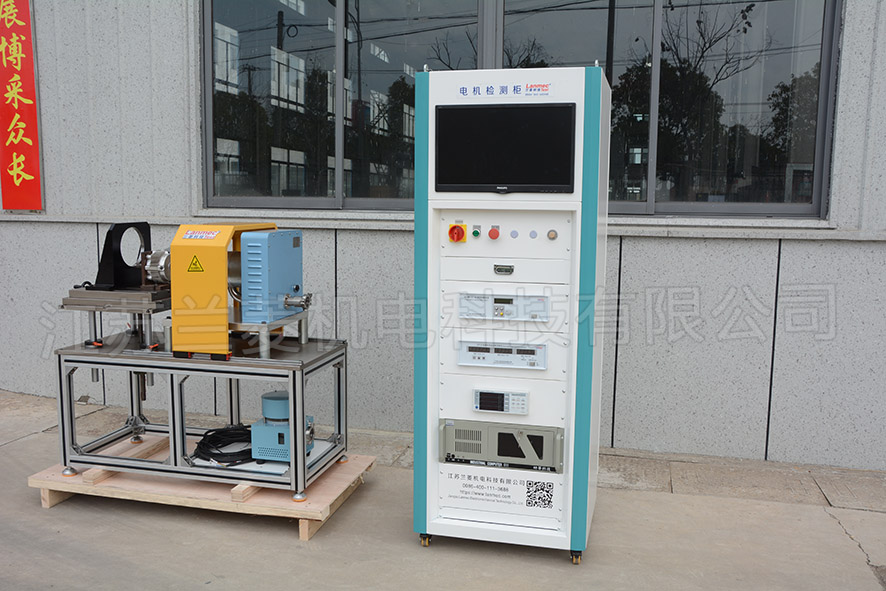

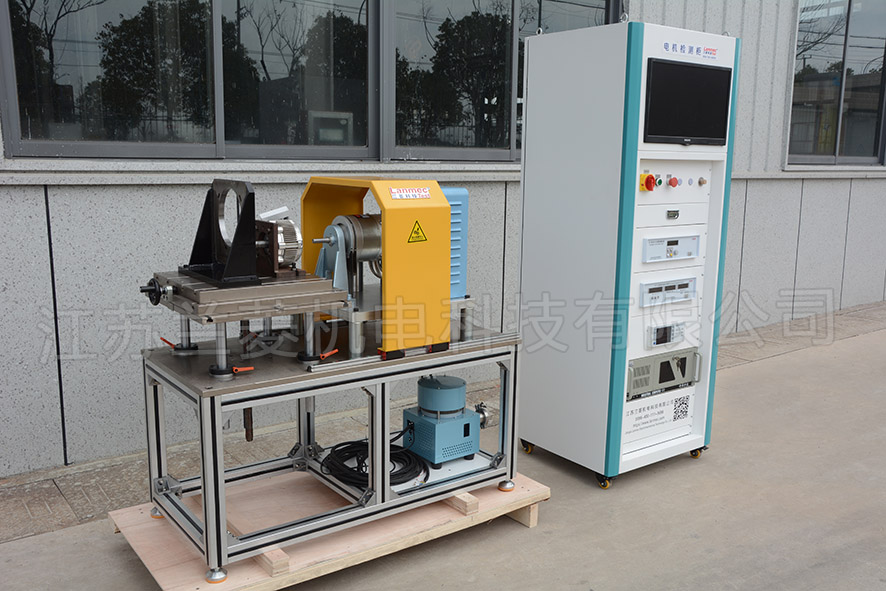

| This motor test bench is loaded with a hysteresis dynamometer and is equipped with a high-power fan for cooling. It can measure the motor under test of 12N.m, short-term 3.5kW, and maximum 12000rpm. The motor installation platform of the test bench is designed to be three-dimensional adjustable, which can adapt to flange-mounted motors and base-mounted motors, and the motor installation and adjustment are convenient. When replacing a different type of motor under test, it is only necessary to replace the matching connection fixture, and the product series test can be carried out. The detection and control part is matched with a vertical cabinet, which occupies a small area and is compact in space. The test software adopts the "Motor Test Software" independently developed by our Lanmec Technology, supporting torque, speed and power acquisition instrument, data acquisition module, etc., which can measure the current, voltage, input power of the motor input, and the torque, speed, and output of the motor output. Power, motor efficiency, motor temperature, etc. The data in the test process can be generated into Word, Excel or PDF format files, the data can be edited, saved, printed, etc.; and test curves can be generated; the test process can be manually loaded, automatically loaded, or according to the set torque, time, etc. Curve loading, can carry out motor type test, durability test, temperature rise test, etc. Power test, Lanmec is the first choice, easy measurement, beyond imagination!
|
